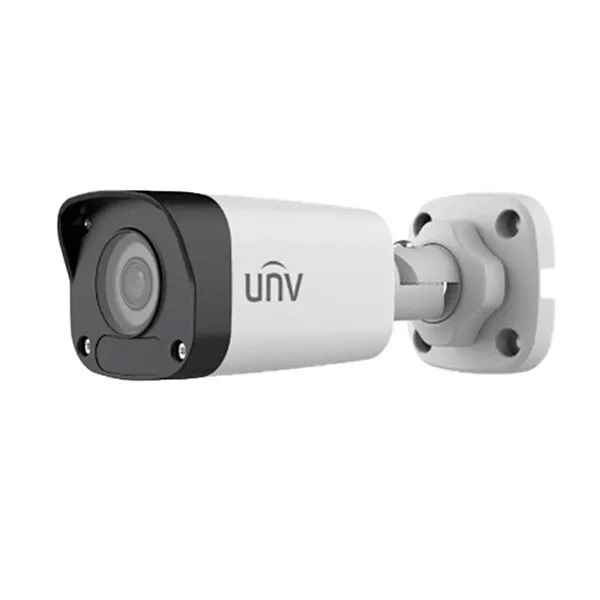

IPC2122LB-SF28(40)-A | UNV 2MP Mini Fixed Bullet Network Camera
• High quality image with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• IP67 protection
• Support PoE power supply
• 3-Axis
Product Specification
| IPC2122LB-SF28-A | IPC2122LB-SF40-A | |||||||
| Camera | ||||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 | ||||
| 4.0 | 62.1 | 24.8 | 12.4 | 6.2 | ||||
| Angle of View (H) | 106.7° | 87.5° | ||||||
| Angle of View (V) | 57.1° | 46.3° | ||||||
| Angle of View (O) | 115.7° | 92.4° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264 | |||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Supported | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | N/A | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP | |||||||
| Compatible Integration | API | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 5.5W | ||||||||
| Dimensions (L × W × H) | 161 × 63 ×62mm (6.4” × 2.5” × 2.4”) | |||||||
| Net Weight | 0.27kg (0.60lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 4KV | |||||||
| Ingress Protection | IP67 | |||||||
| Reset Button | N/A | |||||||
