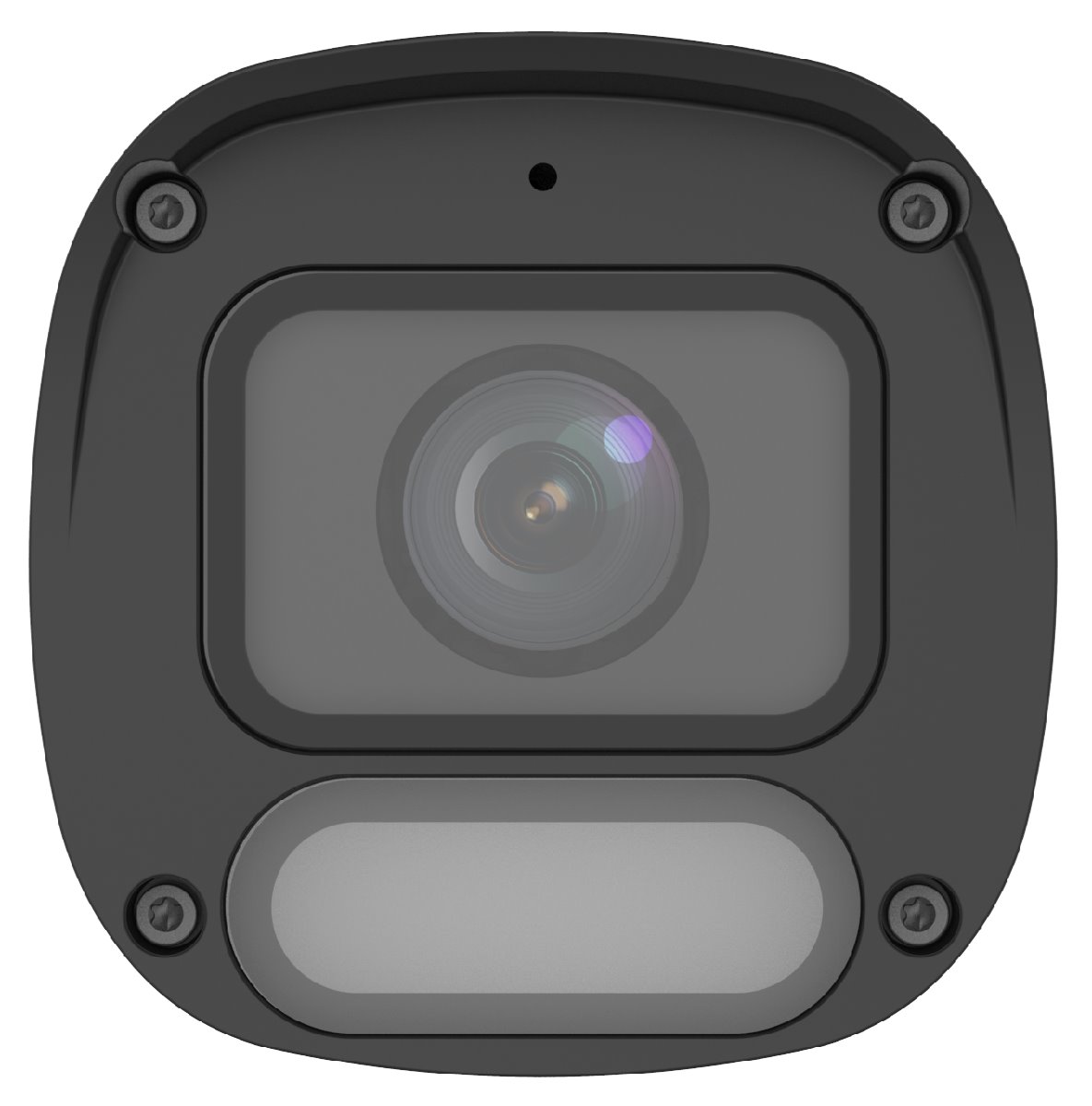

IPC2314LE-ADF40KM-WP
• High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter with Wise-ISP technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m warm light distance
• Supports 512 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
| IPC2314LE-ADF40KM-WP | ||||||
| Camera | ||||||
| Sensor | 1/1.8″, 4.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.0003lux (F1.0, AGC ON) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||
| WDR | 120dB | |||||
| S/N | >52dB | |||||
| Lens | ||||||
| Lens | 4.0mm@F1.0 | |||||
| Iris | ||||||
| Field of View (H) | 89.4° | |||||
| Field of View (V) | 48.2° | |||||
| Field of View (D) | 94.7° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect（m） | Observe（m） | Recognize（m） | ||
| 4.0 | 62.1(203.6ft) | 24.8(81.5ft) | 12.4(40.7ft) | |||
| Illuminator | ||||||
| Warm Light Range | Up to 30m (98ft) | |||||
| Light On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), | |||||
| Video Bit Rate | 128 Kbps~6144Kbps | |||||
| U-code | Support | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Video Stream | Dual streams | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart Illumination | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Cross line, intrusion(based on human body detection),Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way audio | N/A | |||||
| Suppression | Support | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 512GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZView EZLive | |||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||
| Interface | ||||||
| Audio I/O | N/A | |||||
| Alarm I/O | N/A | |||||
| Serial Port | N/A | |||||
| Built-in Mic | Support | |||||
| Built-in Speaker | N/A | |||||
| WIFI | N/A | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
| Certifications | ||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | |||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||
| Protection | IP67 (IEC 60529) | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 2.8W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L × W × H) | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) | |||||
| Weight | 0.48kg(1.06lb) | |||||
| Material | Graphene + Metal | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| surge protection | 4KV | |||||
| Reset Button | Support | |||||
