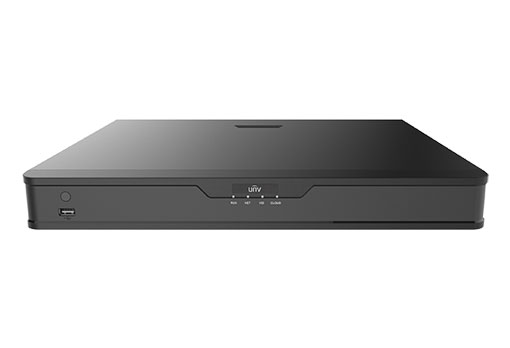

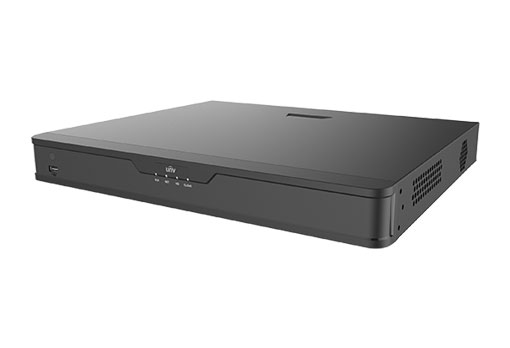

NVR302-E2 Series | UNV Network Video Recorder
• Support Ultra H.265/H.265/H.264 video formats
• 9/16/32-channel input
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
• bHDMI and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• 2 SATA HDDs, Up to 8TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
| Model | NVR302-09E2 | NVR302-16E2 | NVR302-32E2 | |||
| Video/Audio Input | ||||||
| IP Video Input | 9-ch | 16-ch | 32-ch | |||
| Two-way Audio Input | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 320Mbps | |||||
| Outgoing Bandwidth | 180Mbps | 320Mbps | ||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS | |||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |||||
| Video/Audio Output | ||||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Audio Output | 1-ch, RCA | |||||
| Audio Compression | G.711A, G.711U | |||||
| Synchronous Playback | 16-ch | |||||
| Live View Display | 1/4/6/8/9 | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 | |||
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | |||
| Snapshot | ||||||
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution | |||||
| Decoding | ||||||
| Decoding Format | Ultra 265, H.265, H.264 | |||||
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Capability | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 9 x 1080P@30 | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1 | |||
| Hard Disk | ||||||
| SATA | 2 SATA interfaces | |||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | |||||
| eSATA | NA | |||||
| Disk Group | Support | |||||
| Smart | ||||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking | |||||
| VCA Search | Behavior Search, Vehicle Search | |||||
| People Counting | People Flow Counting, Crowd Density Monitoring | |||||
| Smart Intrusion Prevention (SIP), Vehicle Detection by Camera | Total 8-ch | |||||
| General Alarm | ||||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |||||
| USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 | |||||
| RS232 | NA | |||||
| RS485 | 1 | |||||
| Alarm In | 8-ch | |||||
| Alarm Out | 2-ch | |||||
| General | ||||||
| Power Supply | 12VDC/3.3A Power Consumption: ≤ 12 W (without HDD) | |||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||||
| Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1") | |||||
| Weight (without HDD) | ≤1.8Kg (3.97lb) | |||||
| Certification | ||||||
| Certification | CE, FCC, UL, RoHS, WEEE | |||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |||||
| FCC | Part15 Subpart B, ANSI C63.4 | |||||
