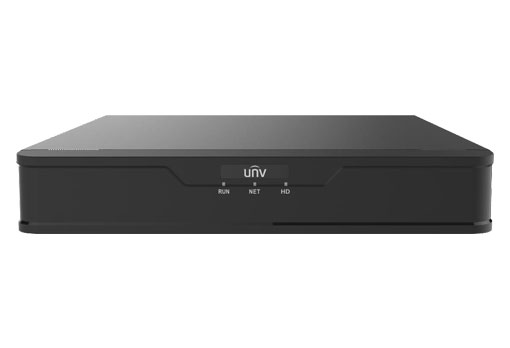

XVR301-Q Series | UNV 4/8-ch 1-SATA NVR
Support H.265/H.264 video formats
Support audio over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
Long transmission distance over coaxial cable
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries
| Model | XVR301-04Q | XVR301-08Q | ||
| Video/Audio Input | ||||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC | ||
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4K | 4-ch(only IP up to 12ch), each channel up to 4K | ||
| Supported Analog Camera Types | Support AHD input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@30fps(channel1) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@20fps (channel1) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 3MP@30fps(channel1-channel2) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 3MP@20fps(channel1-channel2) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input | ||
| Audio Input | 1-ch, RCA | |||
| Two-way Audio | 1-ch, RCA | |||
| Network | ||||
| Incoming Bandwidth | 48Mbps | 56Mbps | ||
| Outgoing Bandwidth | 60Mbps | 64Mbps | ||
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |||
| Video/Audio Output | ||||
| CVBS Output | 1-ch, BNC | |||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| Audio Output | 1-ch, RCA | |||
| Synchronous Playback | 4-ch | 8-ch | ||
| Encoding | ||||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /1080P/960P/720P/960H/D1/4CIF/CIF | |||
| Recording Frame Rate | Main stream: 8MP Lite@8fps(channel1) 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1) 1080P@15fps 720P@30fps Sub stream: D1@12fps(Max) | Main stream: 8MP Lite@8fps 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1-channel2) 1080P@15fps 720P@30fps Sub stream: D1@12fps(Max) | ||
| Hard Disk | ||||
| SATA | 1 SATA interface | |||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | |||
| Smart | ||||
| VCA Detection | 1-ch Intrusion detection and cross line detection on analog camera | 2-ch Intrusion detection and cross line detection on analog camera | ||
| VCA Search | Behavior search on analog camera | |||
| External Interface | ||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||
| USB Interface | Rear panel: 2 x USB2.0 | |||
| Serial Interface | 1 x RS485 | |||
| General | ||||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | |||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||
| Dimensions(W×D×H) | 260mm ×240mm× 46mm (10.2" × 9.4"×1.8") | |||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||
