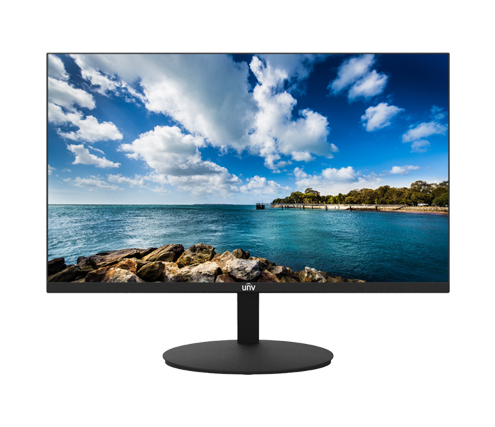

MW3224-V | UNV 24" LED FHD Monitor
• True color display and perfect color reproduction
• Wide viewing angle:178°(H)/ 178°(V)
• No color shift from any view angle
• Specific menu design, which is simple to operate
• Support7*24working and lower power consumption
• Adaptively recognize signal
• VESA stand bracket
• High fidelity digita processing for a brilliant and vivid video
• Professiona therma design to extend equipment lifespan
• Screen can reduce blue light, protect eyes
• Without ripple,use smooth dimming with DC to eliminate screen flicker
• Three sides super slim design, min width can be 2.8mm
• High light transmittance, uniform brightness, rich color, wide color gamut
| Model | MW3224-V |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 23.8” |
| Aspect Ratio | 16:9 |
| Pixel Pitch(mm) | 0.2745* 0.2745 |
| Max Resolution | 1920*1080 |
| Brightness | 250 cd/m2 |
| Contrast | 1000:1 |
| Response Time | 14ms |
| Color | 16.7M |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Refresh Rate | 60Hz |
| Interface | |
| Input | 1*VGA, 1*HDMI |
| Audio | |
| Audio Input | 1, 3.5 mm mini-jack |
| Speaker | 2 * 1.5W |
| OSD | |
| Multi- Language | 2(English, Simplified Chinese ) |
| Mounting | |
| VESA | 100mm * 100mm |
| Wall-mounted Thread | 4-M4 Threaded hole, depth 10mm |
| General | |
| Power supply | DC 12V, 2A |
| Consumption | <24 W(on) <0.5 W(Standby) |
| Operation Temperature | 0°C ~ 40 °C(32°F~104°F) |
| Operating Humidity | 20%~85% (No Condensation) |
| Storage Temperature | -10°C ~50°C (14°F~122°F) |
| Storage Humidity | 10%~90% (No Condensation) |
| Dimension (W×H×D) | 541.8mm * 412.6mm * 200mm(With Pedestal) 21.33"*16.24"*7.87"(With Pedestal) |
| Package(W×H×D) | 606mm * 405mm * 125mm (23.86" * 15.94" * 4.92") |
| Weight | Net Weight:3.3Kg(7.28lb) Gross Weight:4.6Kg(10.14lb) |
| Accessory | |
| Standard | HDMI cable, Power cable, Adapter, Pedestal, Quick Guide |
| Optional | Hanging bracket(Model: HB-4022-E) |
