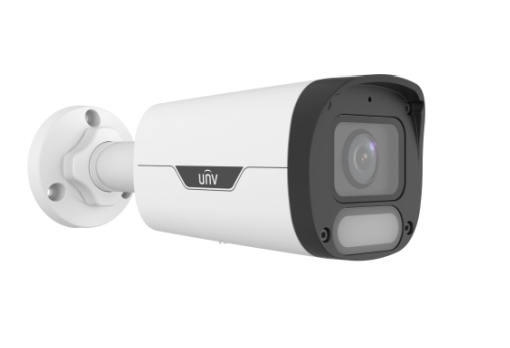

IPC2312LE-ADF40KM-WP

IPC2312LE-ADF28KM-WP

IPC2312LE-ADF40KM-WP

Camera

Sensor

1/2.7", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.0003lux (F1.0, AGC ON)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

WDR

120dB

S/N

>52dB

Lens

Lens

2.8mm@F1.0

4.0mm@F1.0

Iris

Fixed

Field of View (H)

99.0°

77.5°

Field of View (V)

53.0°

42.5°

Field of View (D)

118.0°

91.5°

DORI

DORI Distance

Lens (mm)

Detect（m）

Observe（m）

Recognize（m）

Identify（m）

2.8

45.0(147.6ft)

18.0(59.1ft)

9.0(29.5ft)

4.5(14.8ft)

4.0

64.3(210.9ft)

25.7(84.4ft)

12.9(42.2ft)

6.4(21.1ft)

Illuminator

Warm Light Range

Up to 30m (98ft)

Light On/Off Control

Auto/Manual

Video

Video Compression

Ultra265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~6144Kbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video Stream

Dual streams


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart Illumination

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Events

Basic Detection

Cross line, intrusion(based on human body detection),Motion detection, Ultra motion detection, Tampering alarm, Audio Detection

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way audio

N/A

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 512GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

Certifications

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)

FCC (FCC 47 CFR part15 B)

Safety

CE-LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 2.8W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (L × W × H)

206 × 73 × 73mm (8.1” × 2.9” × 2.9”)

Weight

0.47kg(1.04lb)

Material

Graphene + Metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

surge protection

4KV
