No data !| Content of Data Sheet | ||||
| Product model | CAB-LC3100A-E-IN / CAB-LC3100B-E-IN | |||
| Product specification | HSYV-6 4×2×0.52 |  | ||
| Test Standard | ISO/IEC11801、TIA-568-C.2、 YD/T1019 | |||
| Conductor | Material | OFC(Oxygen free copper) | ||
| AWG | 24 | |||
| Nom.O.D.(mm) | 0.52±0.03 mm | |||
| DC resistance | ≤95 Ω/km | |||
| Insulation | Material | HDPE | ||
| Thickness | 0.2±0.02 mm | |||
| Diameter | 0.93±0.05 mm | |||
| Color | Blue/White- Blue | Green/White-Green | ||
| Orange/White-Orange | Brown/White-Brown | |||
| Pitch | Offset pitch | ≤20 mm | ||
| Cable pitch | ≤120 mm | |||
| Sheath | Material | PVC(complies RoHS/REACH) | ||
| External O.D. | 5.8±0.3 mm | |||
| Color | Orange | |||
| Tensile strength | >13.5 Mpa | |||
| Thickness | 0.6±0.05 mm | |||
| Surface Printing | Letter height | 3.0±0.3 mm | ||
| Color | Black | |||
| Print error & Space | 1±0.005 m | |||
| Case number | Yes | |||

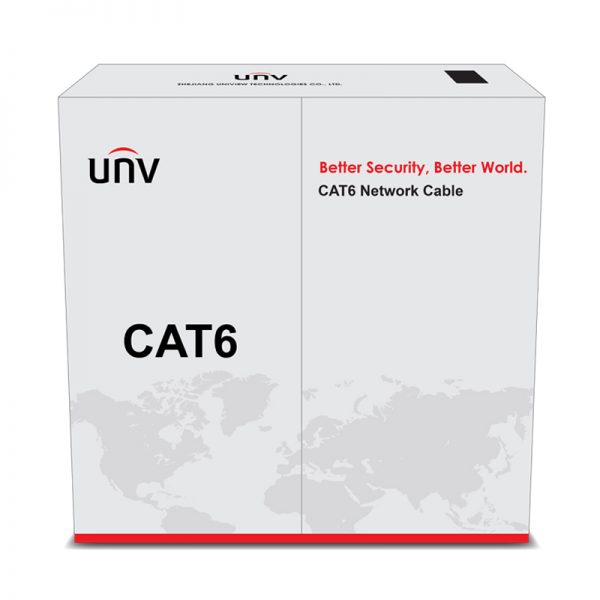

| Packing | Packing | Carton | ||
| Once packing dimension | 420mm*205mm*420mm | |||
| Twice packing dimension | 450mm*440mm*445mm | |||
| Twice packing quantity | 2 cases | |||
| Packing length | 305±1m | |||
| Rip-cord | Yes | Crossing backbone | Yes | |
| Ambient temperature | -20℃～60℃ | |||
